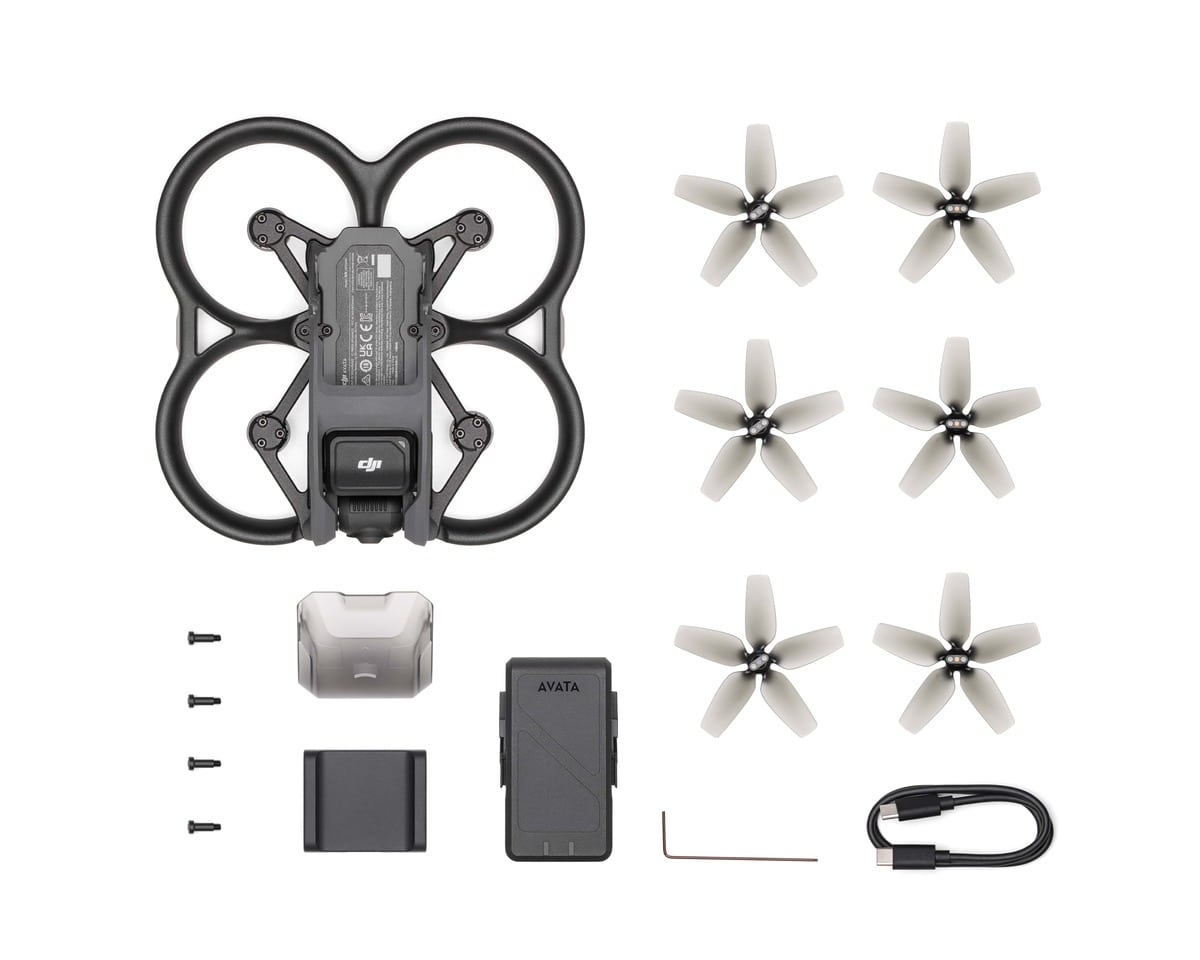

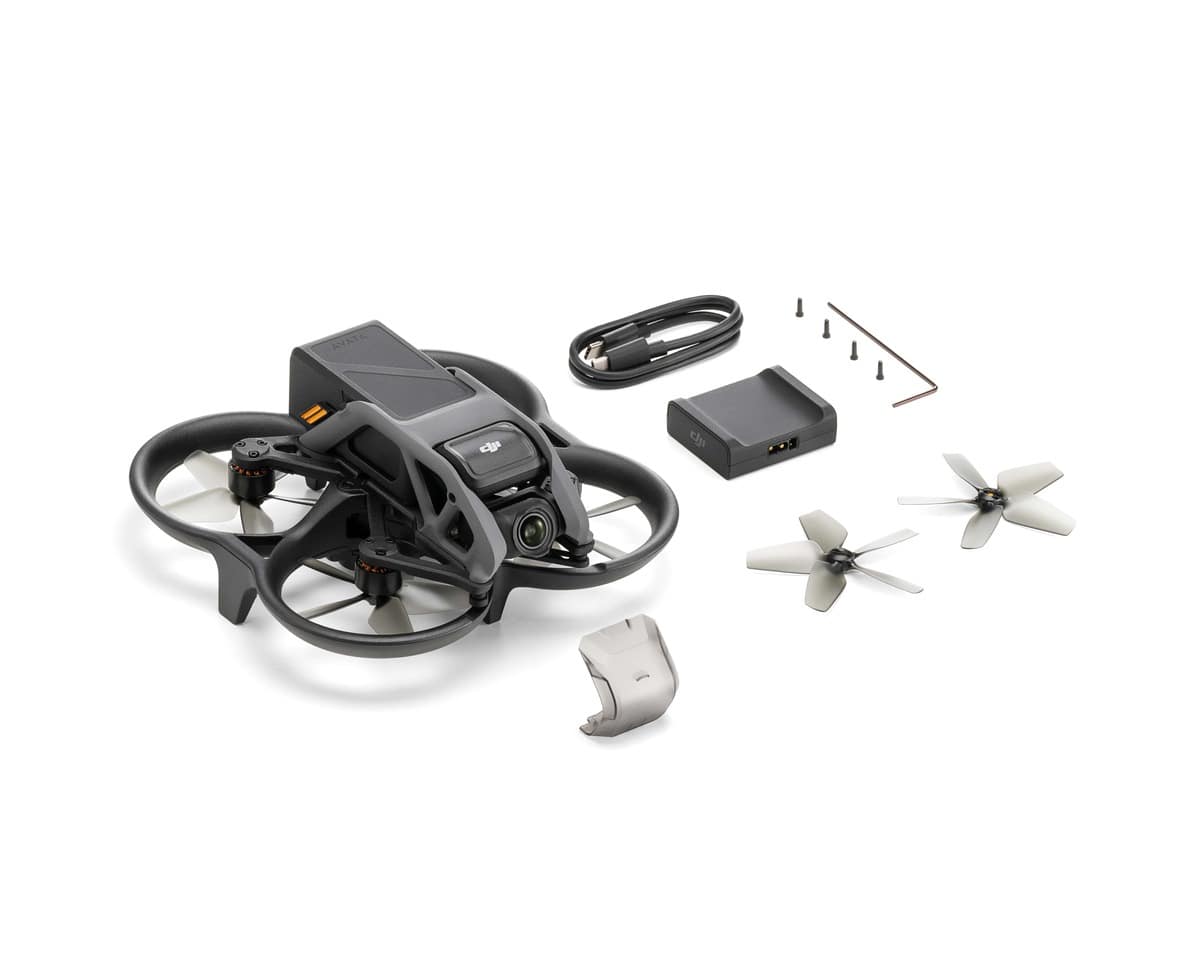

DJI AVATA – Only drone

Beschrijving

Hier is hij dan de kleine broer van de DJI FPV, namelijk de DJI AVATA – Only drone . Dit toestel is een totaal anders dan de gekende toestellen van DJI. De DJI AVATA is ook beter bekend als een Cinewhoop drone. Het is een snelle wendbare drone waardoor u waanzinninge beelden kan maken.

Het vliegen van deze drone verloopt via een DJI Goggles een VR reality bril waardoor het lijkt dat je mee vliegt met de drone en effectief achter het stuur zit.

Dit betekent dat dit toestel zeer compact is, zeer wendbaar, krachtig en voorzien is van een FPV-systeem (First Person View-system).

Eigenschappen:

Camera:

• Sensor
  • 1/1.7-inch CMOS
  • Effective Pixels: 48 MP
• Lens
  • FOV: 155°
  • Equivalent Focal Length: 12.7 mm
  • Focal Length: 2.34 mm
  • Aperture: f/2.8
  • Focus Mode: FF

Gimbal:

• Mechanical Range: Tilt: -95° to 75°
• Controllable Range: Tilt: -80° to +65°
• Stabilization: Single-Axis (tilt)
• Max Control Speed: 60°/s
• Angular Vibration Range: ±0.01°
• Electronic Roll Axis Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone

Aircraft:

• Model QF2W4K
• Takeoff Weight Approx. 410 g
• Dimensions (L×W×H) 180×180×80 mm
• Diagonal Distance 120 mm
• Max Ascent Speed 6 m/s (Normal Mode, Sport Mode)
• Max Descent Speed 6 m/s (Normal Mode, Sport Mode)
• Max Speed [1]
  • 8 m/s (Normal Mode)
  • 14 m/s (Sport Mode)
  • 27 m/s (Manual Mode)
• Maximum Takeoff Altitude 5000 m
• Max Hover Time Approx. 18 mins [2]
• Max Flight Distance 11.6 km
• Max Wind Speed Resistance 10.7 m/s (Level 5)
• Operating Temperature Range -10° to 40° C (14° to 104° F)
• Transmission Power (EIRP)
  • FCC: < 33 dBm
  • CE: < 14 dBm
  • SRRC: < 30 dBm
• Antennas Dual Antennas, 2T2R
• GNSS GPS + Galileo + BeiDou
• Hovering Accuracy Range Vertical:
  • ±0.1 m (with Vision Positioning)
  • ±0.5 m (with GNSS Positioning)Horizontal:
  • ±0.3 m (with Vision Positioning)
  • ±1.5 m (with GNSS Positioning)
• Internal Storage 20 GB

Intelligent Flight Battery

• Battery Capacity 2420 mAh
• Voltage 14.76 V
• Charging Voltage Limit 17 V
• Type Li-ion
• Weight Approx. 162 g
• Charging Temperature Range 5° to 40° C (41° to 104° F)
• Video Transmission Communication Frequency
  • 2.400-2.4835 GHz (RX only)
  • 5.725-5.850 GHz (RX and TX) [4]
• Communication Bandwidth Max 40 MHz
  • Live View Quality and Latency [5] With DJI FPV Goggles V2:
  • 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
  • 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.With DJI Goggles 2:
  • 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
  • 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
• Max Video Transmission Bitrate [6] 50 Mbps
• Max Video Transmission Range [7] 10 km (FCC), 2 km (CE), 6 km (SRRC)

DJI Goggles 2

• Model RCDS18
• Weight Approx. 290 g (headband included)
• Dimensions (L×W×H)
  • With antennas folded: 167.40×103.90×81.31 mm
  • With antennas unfolded: 196.69×103.90×104.61 mm
• Screen Size (single screen) 0.49-inch
• Resolution (single screen) 1920×1080
• Refresh Rate Up to 100 Hz
• Interpupillary Distance Range 56-72 mm
• Diopter Adjustment Range -8.0 D to +2.0 D
• FOV (single screen) 51°
• Communication Frequency
  • 2.400-2.4835 GHz
  • 5.725-5.850 GHz [4]

Transmission Power (EIRP) 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

Wi-Fi Protocol Wi-Fi 802.11b/a/g/n/ac

Wi-Fi Communication Frequency 2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) [4]
5.725-5.850 GHz [4]

Wi-Fi Transmission Power (EIRP) 2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz [8]: < 20 dBm (FCC/CE/KC)
5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

Bluetooth Protocol Bluetooth 5.2

Bluetooth Communication Frequency 2.400-2.4835 GHz

Bluetooth Transmission Power (EIRP) < 8 dBm

Max Video Transmission Bitrate [6] 50 Mbps

Video Recording Format MOV

Supported Video and Audio Playback Formats MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)

Wi-Fi Wireless Streaming Supports DLNA Protocol

Operating Temperature Range -10° to 40° C (14° to 104° F)

Power Input DJI Goggles 2 Battery

Supported SD Cards microSD (up to 256 GB)
DJI Goggles 2 Battery Capacity 1800 mAh

Voltage 7-9 V (1.5 A)

Type Li-ion

Energy 18 Wh

Charging Temperature Range 0° to 45° C (32° to 113° F)

Max Charging Power 12.6 W (5 V/2 A, 9 V/1.4 A)

Weight Approx. 122 g

Dimensions (L×W×H) 73.04×40.96×26 mm

Operating Time Approx. 2 hours
DJI FPV Goggles V2 Model FGDB28

Weight Approx. 420 g (headband and antennas included)

Supported Video and Audio Playback Formats MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)

Operating Temperature Range 0° to 40° C (32° to 104° F)

Video Recording Format MOV (video coding format: H.264)

FOV 30° to 54°, adjustable
Image Size: 50% to 100%

Communication Frequency 2.400-2.4835 GHz
5.725-5.850 GHz [4]

Max Video Transmission Bitrate [6] 50 Mbps

Dimensions (L×W×H) Without antennas: 184×122×110 mm
With antennas: 202×126×110 mm

Transmission Power (EIRP) 2.400-2.4835 GHz
FCC: < 28.5 dBm
CE: < 20 dBm
SRRC: < 20 dBm5.725-5.850 GHz [4]
FCC: < 31.5 dBm
CE: < 14 dBm
SRRC: < 19 dBm

Screen Size (single screen) 2-inch

Power Input Dedicated DJI Goggles batteries

Supported SD Cards microSD (up to 256 GB)

Communication Bandwidth Max 40 MHz

Interpupillary Distance Range 58-70 mm

Refresh Rate 144 Hz

Screen Resolution 1440×810
DJI FPV Goggles V2 Battery Weight Approx. 119 g

Dimensions (L×W×H) 73.04×40.96×26 mm

Capacity 1800 mAh

Voltage Max 9 V

Type Li-Po 2S

Energy 18 Wh

Charging Temperature Range 0° to 45° C (32° to 113° F)

Max Charging Power 10 W

Operating Time Approx. 110 mins
DJI Motion Controller Model FC7BMC

Weight Approx. 167 g

Communication Frequency 2.400-2.4835 GHz
5.725-5.850 GHz [4]

Transmission Power (EIRP) 2.4 GHz: < 28.5 dBm (FCC), < 20 dBm (CE/SRRC)
5.8 GHz [4]: < 31.5 dBm (FCC), < 19 dBm (SRRC), < 14 dBm (CE)

Operating Temperature Range -10° to 40° C (14° to 104° F)

Operating Time Approx. 5 hours
DJI FPV Remote Controller 2 Model FC7BGC

Weight Approx. 346 g

Communication Frequency 2.400-2.4835 GHz
5.725-5.850 GHz [4]

Transmission Power (EIRP) 2.4 GHz: < 28.5 dBm (FCC), < 20 dBm (CE/SRRC)
5.8 GHz [4]: < 31.5 dBm (FCC), < 19 dBm (SRRC), < 14 dBm (CE)

Dimensions (L×W×H) 190×140×51 mm

Operating Time Approx. 9 hours

Operating Temperature Range -10° to 40° C (14° to 104° F)

Charging Time 2.5 hours

Foodnotes
1. The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
2. Tested when hovering in an environment without wind or interference.
3. DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode and S Mode.
4. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
5. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
6. Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
7. FCC compliant and tested in an outdoor open environment without interference. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI Avata in countries/regions of different standards:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
SRRC: Mainland China.
CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
8. The 5.1 GHz frequency band is currently banned in China and Thailand. For details, please refer to local laws and regulations.
