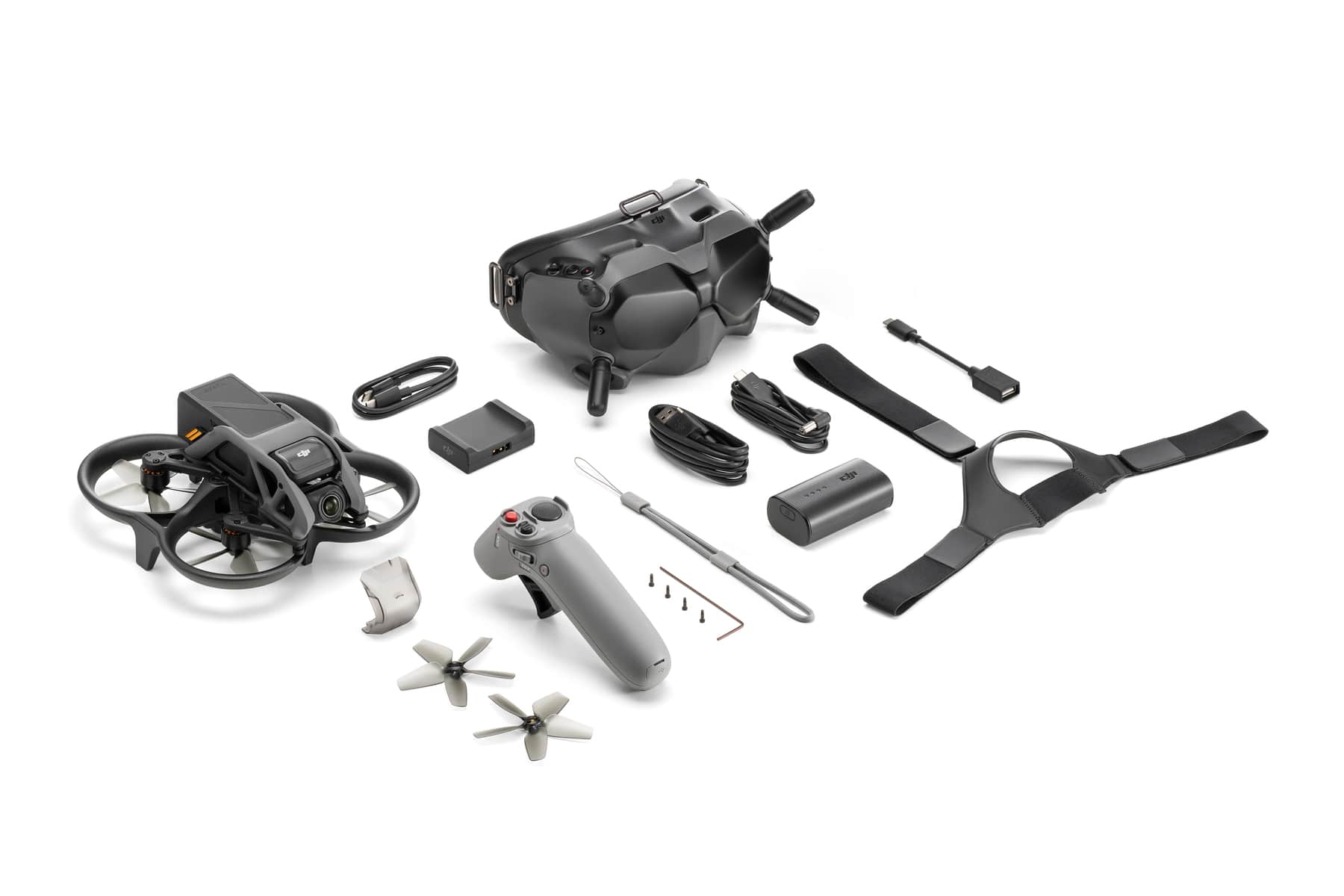

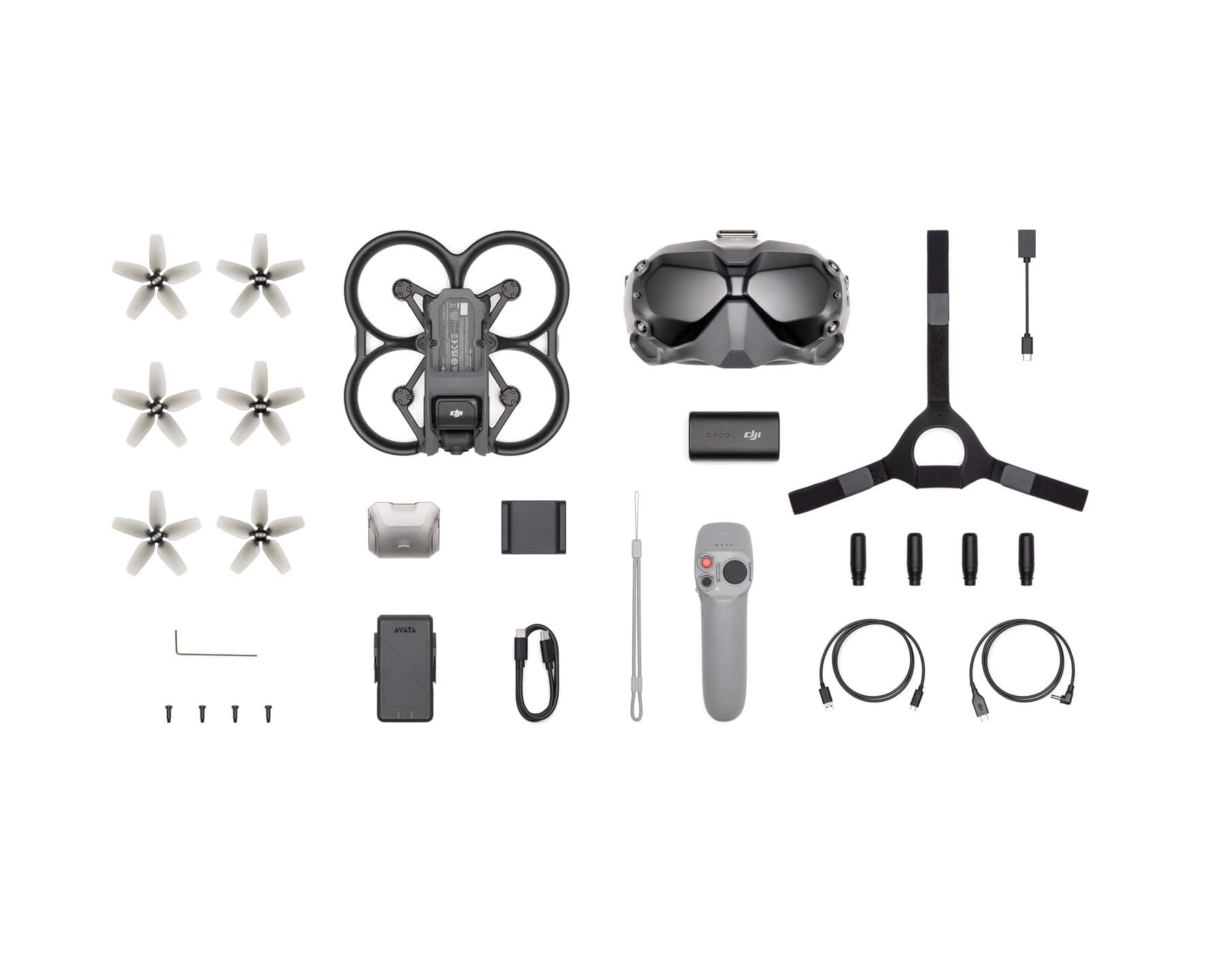

DJI AVATA – Fly Smart Combo (Goggles V2)

 1149,00 incl. BTW

Hier is hij dan de kleine broer van de DJI FPV, namellijk deDJI AVATA – Fly Smart Combo (Goggles V2) . Dit toestel is een totaal andere versie dan de gekende toestellen van DJI. De DJI AVATA is ook beter bekend als een Cinewhoop drone.

Dit betekent dat dit toestel zeer compact is, zeer wendbaar, krachtig en voorzien is van een FPV-systeem (First Person View-system).

Op bestelling - vraag eerst naar beschikbaarheid

  • Belgische webshop
  • Persoonlijk advies
  • Gratis bezorgd vanaf €150
  • Gratis retourneren binnen 14 dagen (zie verkoopsvoorwaarden)

Stuur me een mail wanneer dit product opnieuw beschikbaar is

We verzenden met
Betaal o.a. met
Artikelnummer: DD26643
EAN: N/B
Categorie: Tags: ,
Waarom dronedepot.be?
Uw dronespecialist voor België
  • Ons doel is een tevreden klant
  • Meer dan 1000 DJI producten on-line
Gevestigd in België
  • Gratis verzending vanaf €150,00 (BE/NL)
  • Wettelijke zichttermijn 14 dagen
  • Afhalen mogelijk na afspraak
  • Betaal in het afhaalpunt met Cash/Bancontact/Payconiq
  • Op werkdagen verzending tot 20:00
  • Alle dagen telefonisch bereikbaar tot 19:00 op +32(0)470 06 84 16
Gepassioneerd door Drones
  • Klantenservice voor en na-verkoop
  • Persoonlijke klantenservice en tijd
  • Steeds actuele status beschikbaar over uw bestelling
  • Eigen hersteldienst

Beschrijving

Hier is hij dan de kleine broer van de DJI FPV, namellijk de DJI AVATA – Fly Smart Combo (Goggles V2) . Dit toestel is een totaal andere versie dan de gekende toestellen van DJI. De DJI AVATA is ook beter bekend als een Cinewhoop drone.

Dit betekent dat dit toestel zeer compact is, zeer wendbaar, krachtig en voorzien is van een FPV-systeem (First Person View-system).



Camera Sensor 1/1.7-inch CMOS
Effective Pixels: 48 MP
Lens FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
ISO Range 100-6400 (Auto)
100-25600 (Manual)
Shutter Speed Video: 1/8000-1/50 s
Photo: 1/8000-1/50 s
Still Photography Mode Single Shot
Max Image Size 4000×3000
Photo Format JPEG
Video Resolution With DJI Goggles 2:
[email protected]/60fps
[email protected]/60/100fps
[email protected]/60/100fpsWith DJI FPV Goggles V2:
[email protected]/60fps
[email protected]/60/100/120fps
[email protected]/60/100/120fps
Video Format MP4
Max Video Bitrate 150 Mbps
Color Mode Standard
D-Cinelike
EIS Supports RockSteady and HorizonSteady
Can be disabled
Distortion Correction Supports Normal Mode, Wide Mode, and Ultra Wide Mode
Supported File System exFAT (recommended)
FAT32
Gimbal Mechanical Range Tilt: -95° to 75°
Controllable Range Tilt: -80° to +65°
Stabilization Single-Axis (tilt)
Max Control Speed 60°/s
Angular Vibration Range ±0.01°
Electronic Roll Axis Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
Aircraft Model QF2W4K
Takeoff Weight Approx. 410 g
Dimensions (L×W×H) 180×180×80 mm
Diagonal Distance 120 mm
Max Ascent Speed 6 m/s (Normal Mode, Sport Mode)
Max Descent Speed 6 m/s (Normal Mode, Sport Mode)
Max Speed [1] 8 m/s (Normal Mode)
14 m/s (Sport Mode)
27 m/s (Manual Mode)
Maximum Takeoff Altitude 5000 m
Max Hover Time Approx. 18 mins [2]
Max Flight Distance 11.6 km
Max Wind Speed Resistance 10.7 m/s (Level 5)
Operating Temperature Range -10° to 40° C (14° to 104° F)
Transmission Power (EIRP) FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
Antennas Dual Antennas, 2T2R
GNSS GPS + Galileo + BeiDou
Hovering Accuracy Range Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GNSS Positioning)Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GNSS Positioning)
Supported SD Cards microSD (up to 256 GB)
Recommended microSD Cards SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
Internal Storage 20 GB
Sensing System Downward (Binocular Vision and ToF) [3] ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m
Operating Environment Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions)

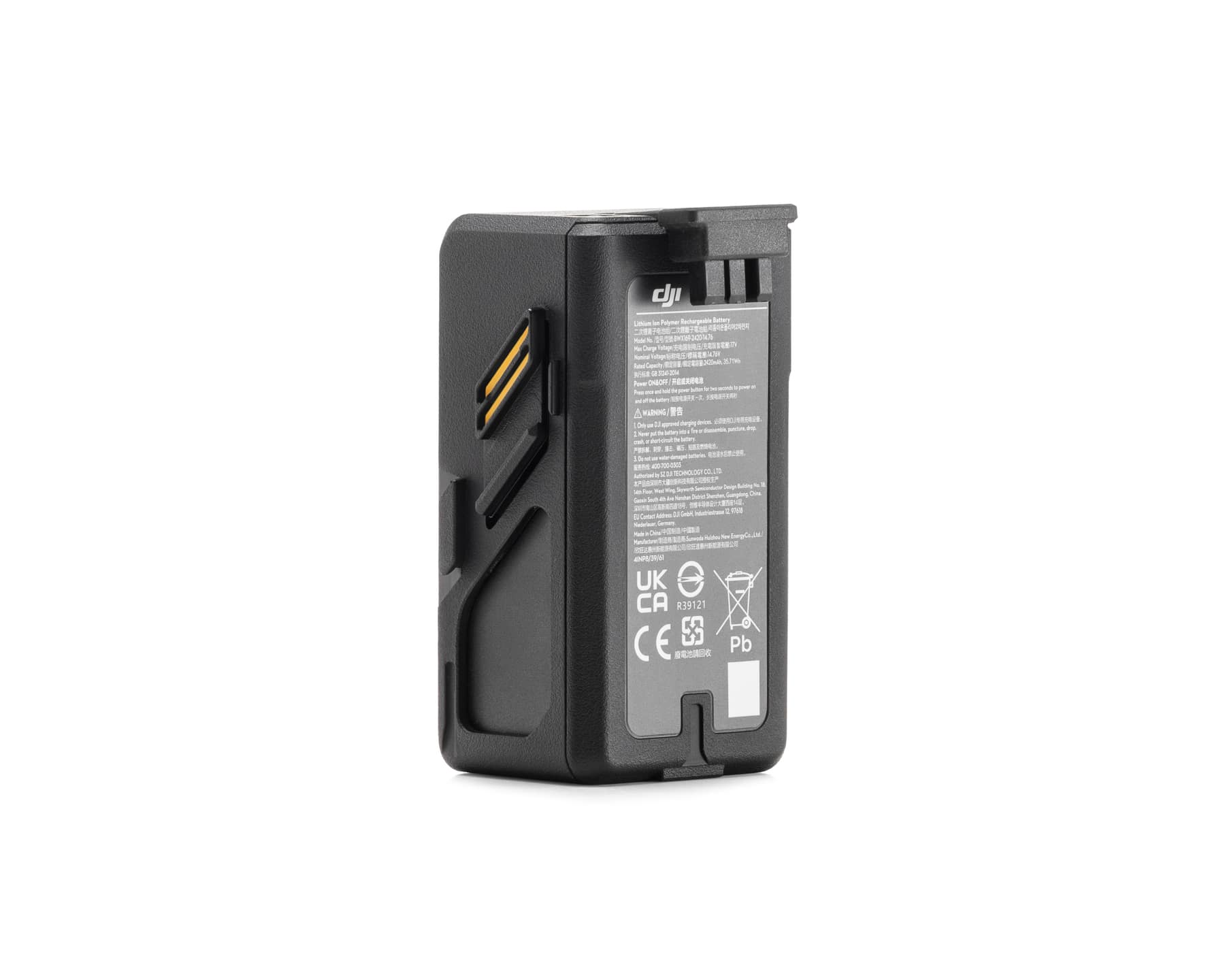

Intelligent Flight Battery Battery Capacity 2420 mAh
Voltage 14.76 V
Charging Voltage Limit 17 V
Type Li-ion
Chemical System LiNiMnCoO2
Energy 35.71 [email protected]
Discharge Rate Typical: 7C
Weight Approx. 162 g
Charging Temperature Range 5° to 40° C (41° to 104° F)
Video Transmission Communication Frequency 2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [4]
Communication Bandwidth Max 40 MHz
Live View Quality and Latency [5] With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
Max Video Transmission Bitrate [6] 50 Mbps
Max Video Transmission Range [7] 10 km (FCC), 2 km (CE), 6 km (SRRC)
DJI Goggles 2 Model RCDS18
Weight Approx. 290 g (headband included)
Dimensions (L×W×H) With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm
Screen Size (single screen) 0.49-inch
Resolution (single screen) 1920×1080
Refresh Rate Up to 100 Hz
Interpupillary Distance Range 56-72 mm
Diopter Adjustment Range -8.0 D to +2.0 D
FOV (single screen) 51°
Communication Frequency 2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP) 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Wi-Fi Protocol Wi-Fi 802.11b/a/g/n/ac
Wi-Fi Communication Frequency 2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) [4]
5.725-5.850 GHz [4]
Wi-Fi Transmission Power (EIRP) 2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz [8]: < 20 dBm (FCC/CE/KC)
5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
Bluetooth Protocol Bluetooth 5.2
Bluetooth Communication Frequency 2.400-2.4835 GHz
Bluetooth Transmission Power (EIRP) < 8 dBm
Max Video Transmission Bitrate [6] 50 Mbps
Video Recording Format MOV
Supported Video and Audio Playback Formats MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)
Wi-Fi Wireless Streaming Supports DLNA Protocol
Operating Temperature Range -10° to 40° C (14° to 104° F)
Power Input DJI Goggles 2 Battery
Supported SD Cards microSD (up to 256 GB)
DJI Goggles 2 Battery Capacity 1800 mAh
Voltage 7-9 V (1.5 A)
Type Li-ion
Energy 18 Wh
Charging Temperature Range 0° to 45° C (32° to 113° F)
Max Charging Power 12.6 W (5 V/2 A, 9 V/1.4 A)
Weight Approx. 122 g
Dimensions (L×W×H) 73.04×40.96×26 mm
Operating Time Approx. 2 hours
DJI FPV Goggles V2 Model FGDB28
Weight Approx. 420 g (headband and antennas included)
Supported Video and Audio Playback Formats MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature Range 0° to 40° C (32° to 104° F)
Video Recording Format MOV (video coding format: H.264)
FOV 30° to 54°, adjustable
Image Size: 50% to 100%
Communication Frequency 2.400-2.4835 GHz
5.725-5.850 GHz [4]
Max Video Transmission Bitrate [6] 50 Mbps
Dimensions (L×W×H) Without antennas: 184×122×110 mm
With antennas: 202×126×110 mm
Transmission Power (EIRP) 2.400-2.4835 GHz
FCC: < 28.5 dBm
CE: < 20 dBm
SRRC: < 20 dBm5.725-5.850 GHz [4]
FCC: < 31.5 dBm
CE: < 14 dBm
SRRC: < 19 dBm
Screen Size (single screen) 2-inch
Power Input Dedicated DJI Goggles batteries
Supported SD Cards microSD (up to 256 GB)
Communication Bandwidth Max 40 MHz
Interpupillary Distance Range 58-70 mm
Refresh Rate 144 Hz
Screen Resolution 1440×810
DJI FPV Goggles V2 Battery Weight Approx. 119 g
Dimensions (L×W×H) 73.04×40.96×26 mm
Capacity 1800 mAh
Voltage Max 9 V
Type Li-Po 2S
Energy 18 Wh
Charging Temperature Range 0° to 45° C (32° to 113° F)
Max Charging Power 10 W
Operating Time Approx. 110 mins
DJI Motion Controller Model FC7BMC
Weight Approx. 167 g
Communication Frequency 2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP) 2.4 GHz: < 28.5 dBm (FCC), < 20 dBm (CE/SRRC) 5.8 GHz [4]: < 31.5 dBm (FCC), < 19 dBm (SRRC), < 14 dBm (CE)
Operating Temperature Range -10° to 40° C (14° to 104° F)
Operating Time Approx. 5 hours
DJI FPV Remote Controller 2 Model FC7BGC
Weight Approx. 346 g
Communication Frequency 2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP) 2.4 GHz: < 28.5 dBm (FCC), < 20 dBm (CE/SRRC) 5.8 GHz [4]: < 31.5 dBm (FCC), < 19 dBm (SRRC), < 14 dBm (CE)
Dimensions (L×W×H) 190×140×51 mm
Operating Time Approx. 9 hours
Operating Temperature Range -10° to 40° C (14° to 104° F)
Charging Time 2.5 hours

Foodnotes
1. The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
2. Tested when hovering in an environment without wind or interference.
3. DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode and S Mode.
4. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
5. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
6. Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
7. FCC compliant and tested in an outdoor open environment without interference. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI Avata in countries/regions of different standards:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
SRRC: Mainland China.
CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
8. The 5.1 GHz frequency band is currently banned in China and Thailand. For details, please refer to local laws and regulations.
